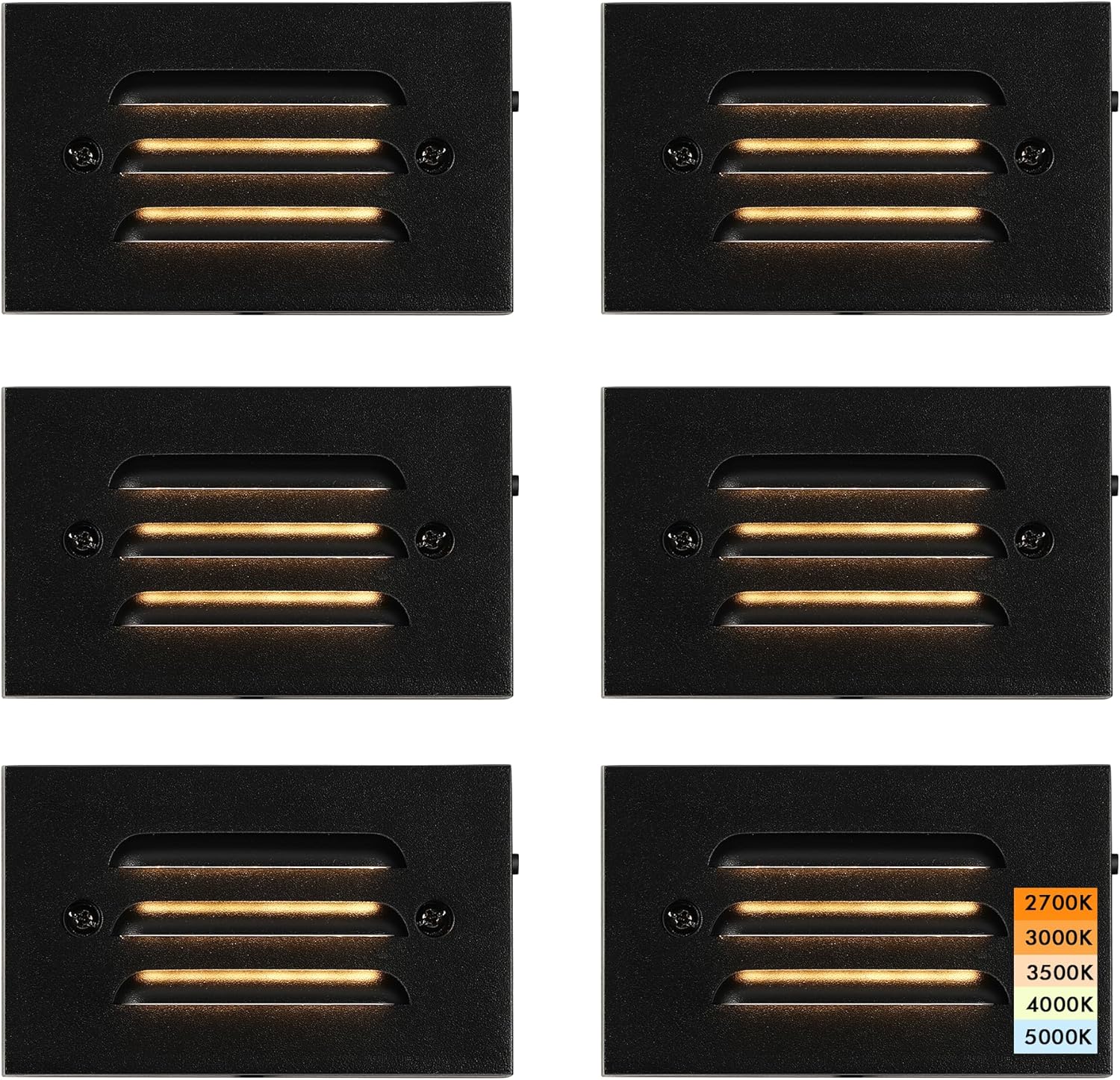

Cloudy Bay Six matte black step lights in a 2x3 grid, illuminated, with 2700K to 5000K color temperature swatch, 6-pack

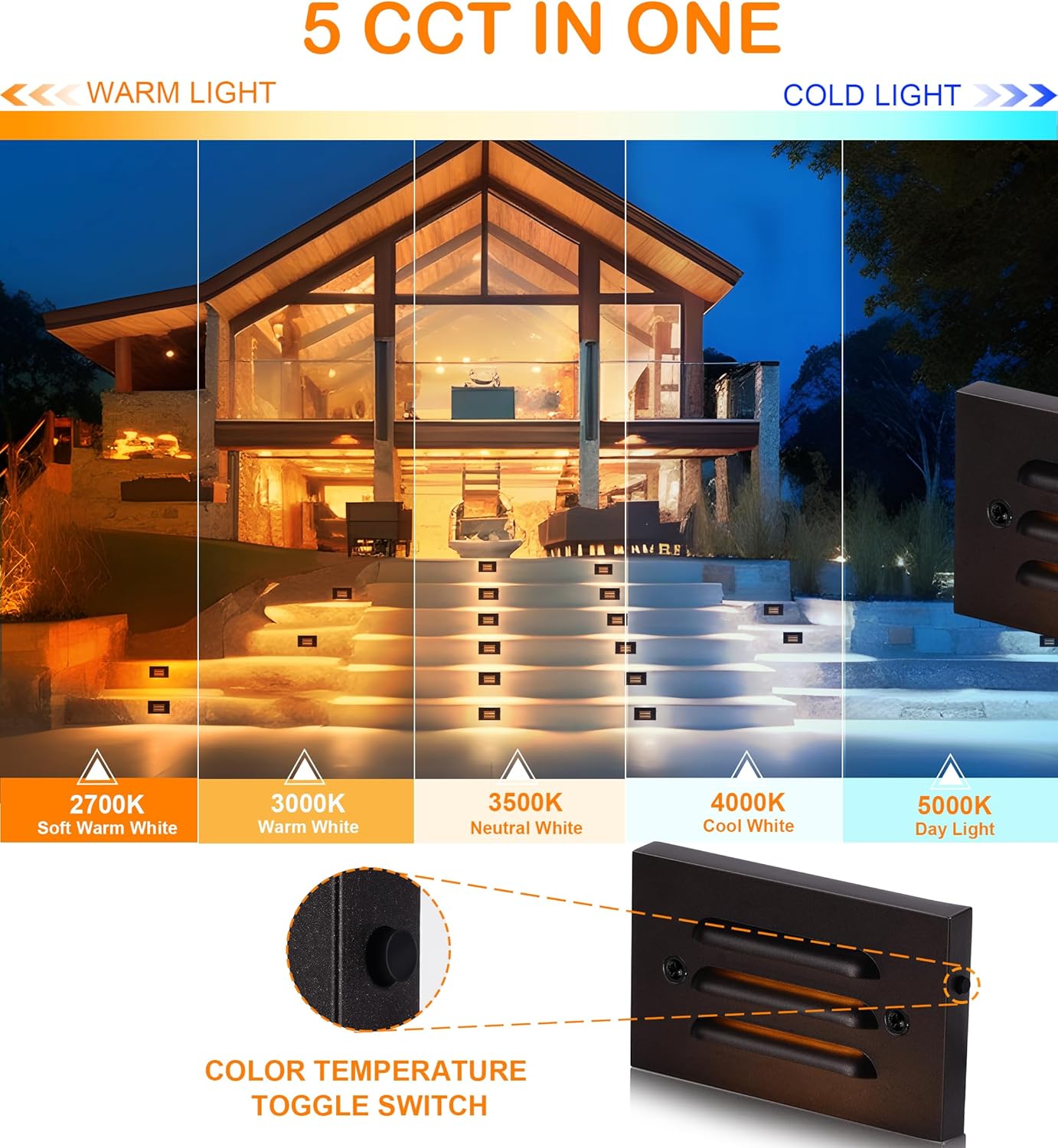

Step light selectable color temperature diagram with 2700K to 5000K options

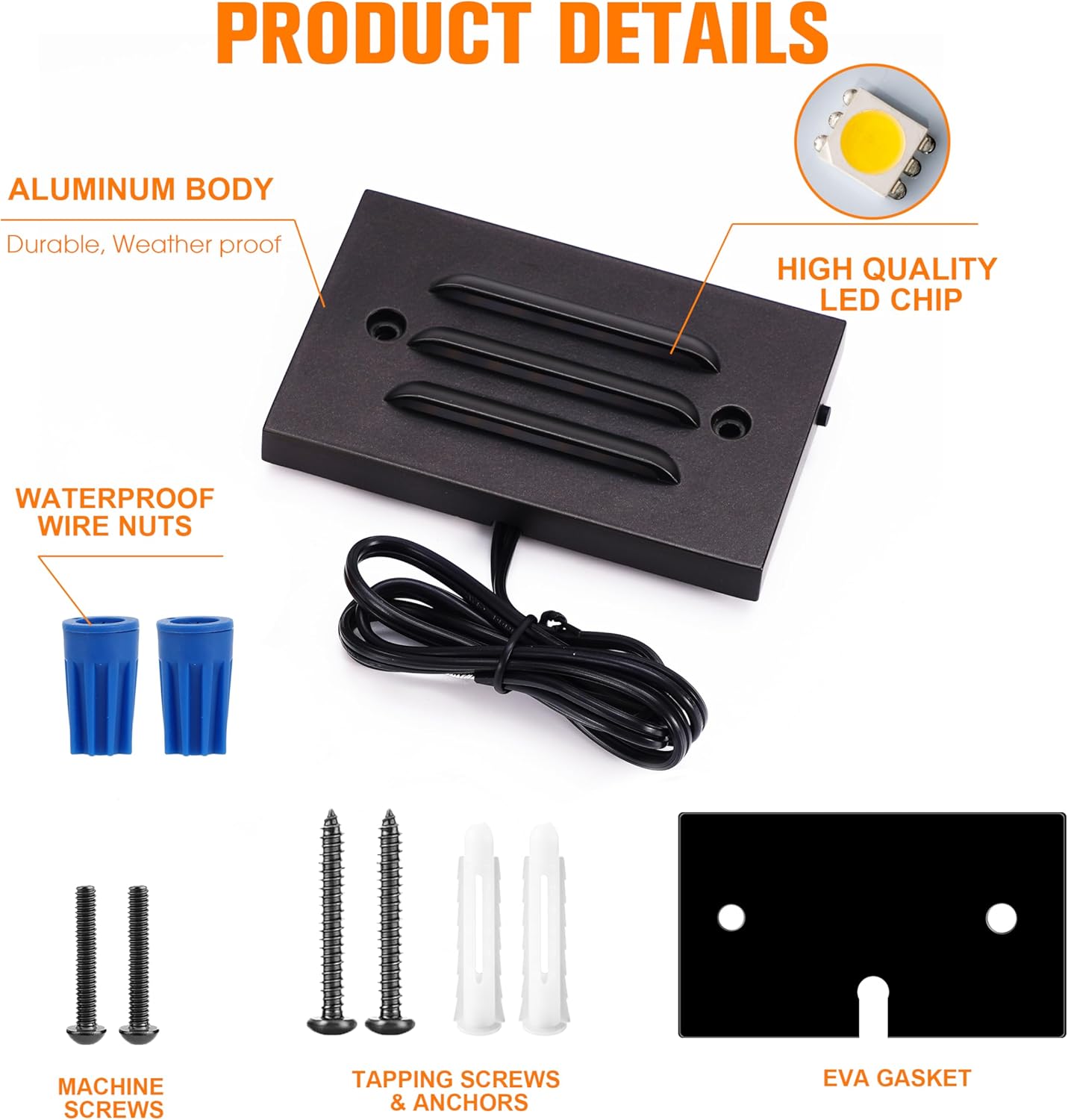

Step light details diagram highlighting aluminum body, LED chip, EVA gasket and waterproof wire nuts

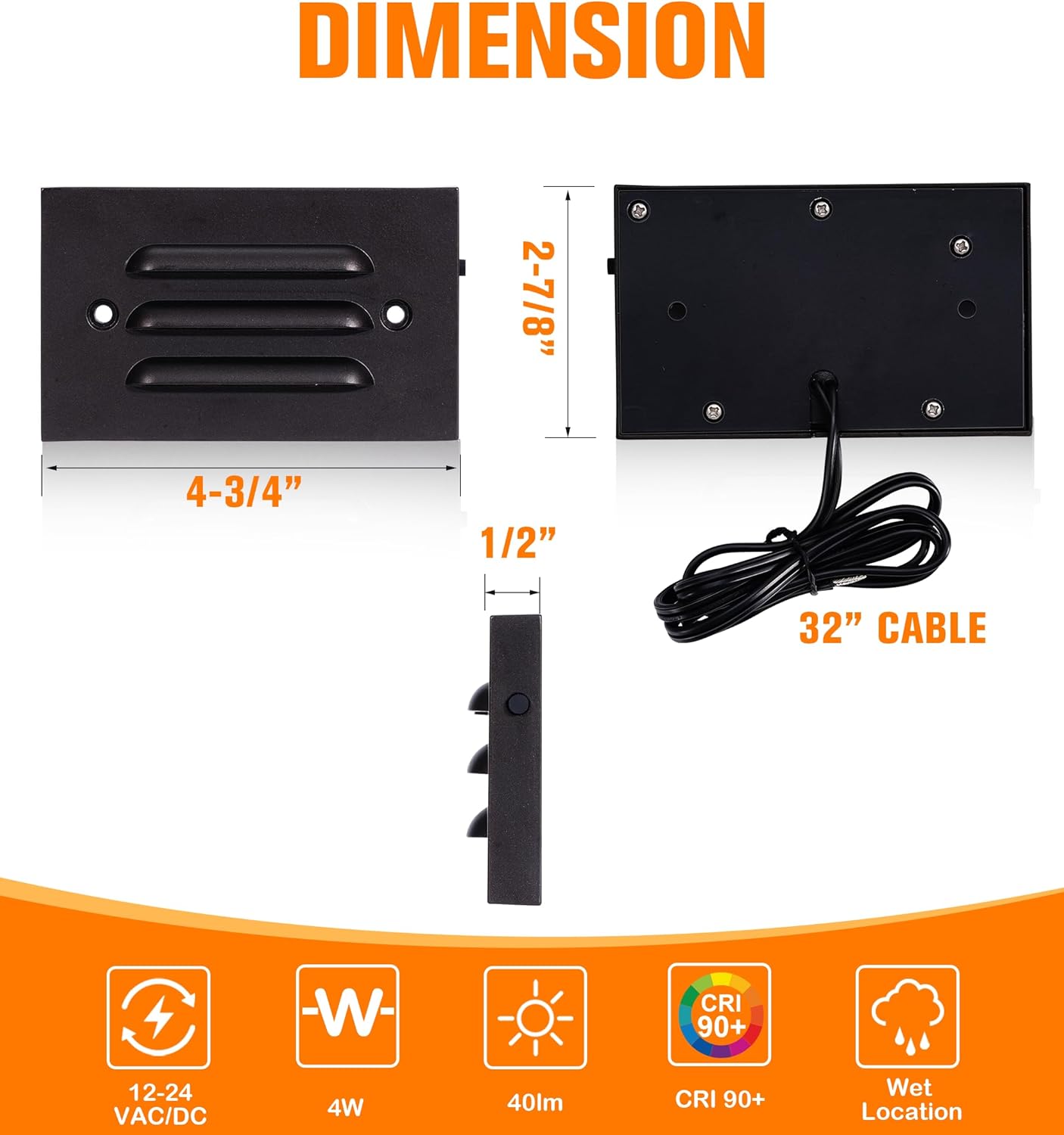

Step light dimension diagram with front, side and back views showing width, height and depth measurements

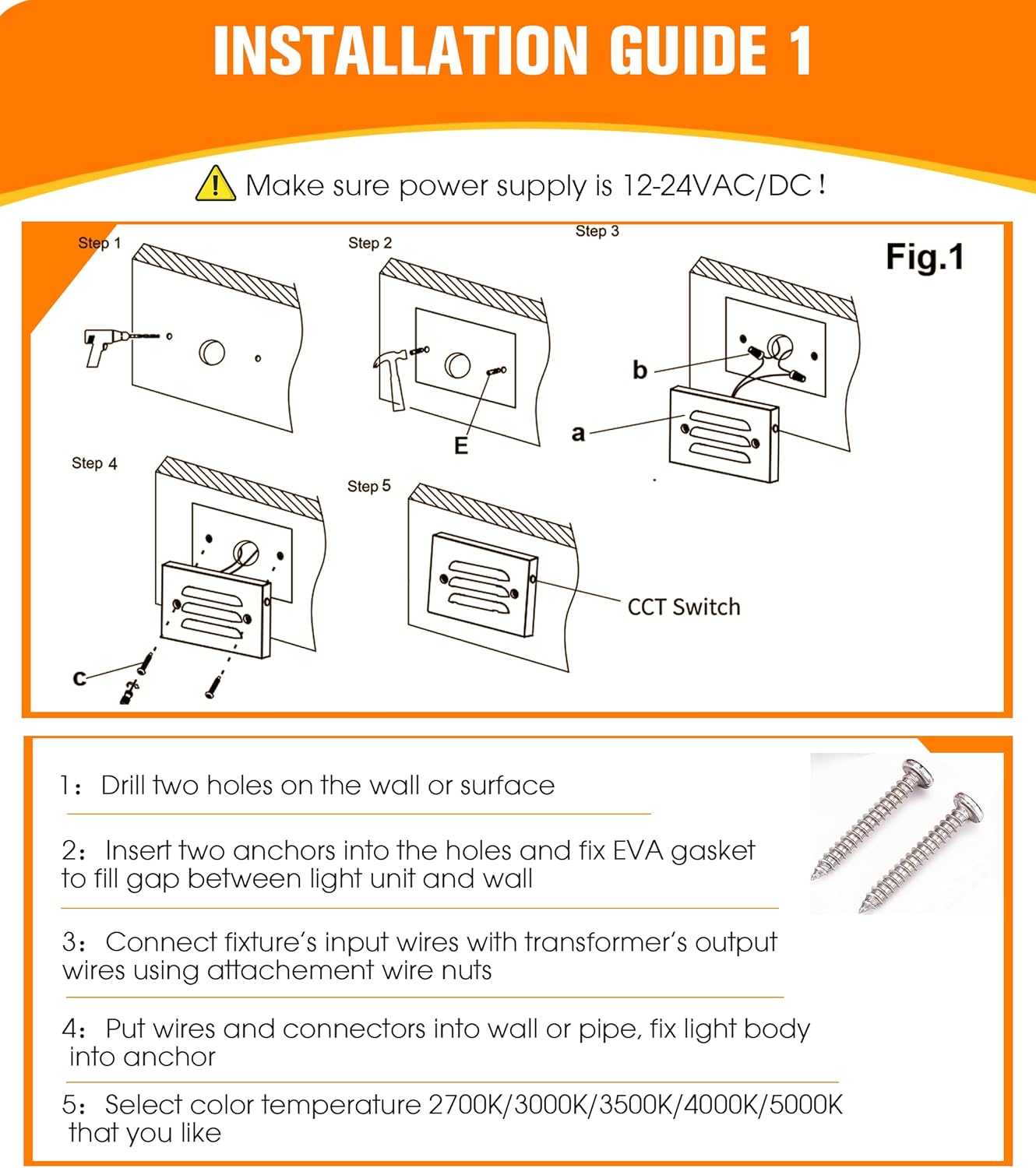

Step light installation step one showing wiring and placement on a stair riser

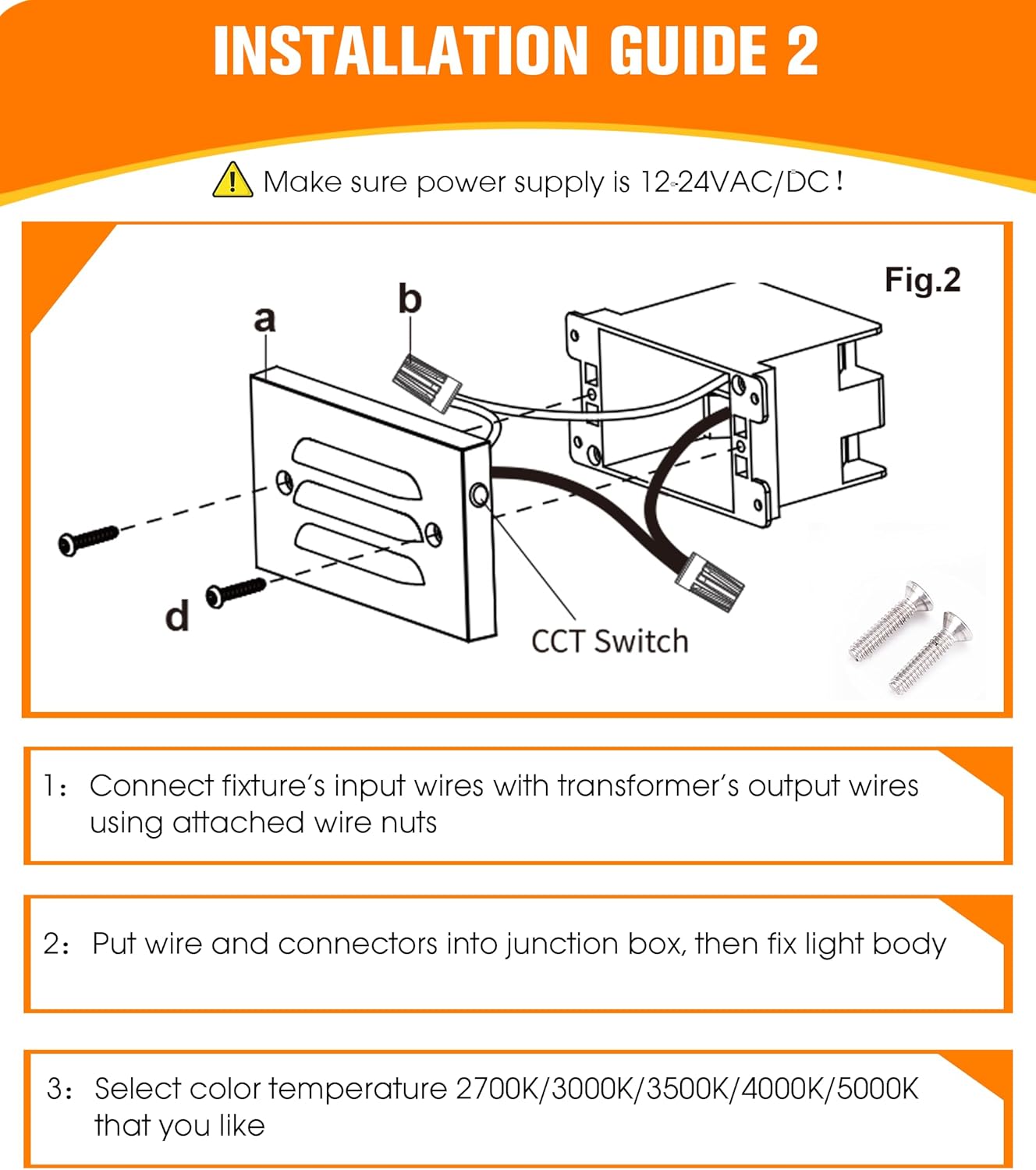

Step light installation step two securing the fixture with screws on a stair riser
Smartphone app interface for controlling the step light color temperature and brightness
Smartphone app interface showing step light group control and scheduling options
Smartphone app main control screen for the step light with on, off and brightness controls
Smartphone app scene selection screen for customizing step light presets
Smartphone app scheduling screen for setting step light timers

Basic parameters

5CCT
5CCT

Color Temperature

40 lm
40 lm

Luminous Flux

4W
4W

Power Consumption

90+
90+

CRI

AC/DC 12V-24V
AC/DC 12V-24V

Input Voltage

Suitable for Wet Locations
Suitable for Wet Locations

Intended Location

Vendor:CLOUDY BAY

Low Voltage LED Step Light with Horizontal Louvered Faceplate, 12V 5CCT 4W, Black, Pack of 6

Walk down after dark without squinting — louvered faceplates throw soft, glare-free light exactly where your foot lands.

$69.99
In stock, ready to ship
Color
Color: Black

If in stock, Ships within 1-2 business days.

Delivery will take around 3-5 business days.

30-day risk-free trial.  Learn more

Basic parameters

5CCT
5CCT

Color Temperature

40 lm
40 lm

Luminous Flux

4W
4W

Power Consumption

90+
90+

CRI

AC/DC 12V-24V
AC/DC 12V-24V

Input Voltage

Suitable for Wet Locations
Suitable for Wet Locations

Intended Location

You may also like
Features
  • Adjustable Color Temperature: 5 selectable temperatures (2700K/3000K/3500K/4000K/5000K) create the perfect ambiance for outdoor steps, decks, and stairs
  • Horizontal Louvered Faceplate: The louvered faceplate delivers soft, diffused illumination while minimizing glare, for comfortable, well-balanced light that enhances safety and aesthetics
  • Wet Location Rated: Built to withstand rain and moisture, so steps and decks stay safely lit in any weather
  • Classic Design: An elegant black finish adds sophistication to outdoor decor, complementing a wide range of architectural styles
  • 2-Way Installation: Choose J-box mount or wall mount to suit your needs—screws, anchors, wire nuts, and EVA gaskets are all included
Specs

Model: – CBST065C-XX (XX=BK/ORB/WH)

Base Material: – Aluminum

Dimensions: – 4.75 x 2.88 x 0.5 inches

Color Temperature: – 2700K / 3000K / 3500K / 4000K / 5000K (selectable)

Wattage: – 4W (per light)

Brightness: – 40 lm (per light)

Voltage: – 12-24V AC/DC

Water Resistance: – Wet Location Rated

Number of Items: – 6

Included Components: – 6 x Light Units, 12 x Wire Nuts, 12 x Tapping Screws, 12 x 6-32 Machine Screws, 12 x Anchors, 6 x EVA Gaskets

Warranty

3-Year Limited


LIMITED WARRANTY:This fixture is warranted against defects in workmanship and materials under normal household use and when installed and operated in accordance with the included instructions. This warranty does not cover damage from misuse, alteration, accident, or improper installation.

Installation Guide

Step-by-step setup instructions for this fixture.

Download Installation Guide (PDF)
