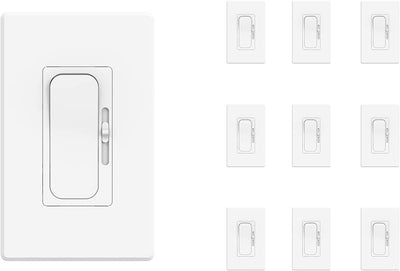

LED Digital Dimmer Switch for LED Light/CFL/Incandescent, 004, 10 PCs

LED Digital Dimmer Switch for LED Light/CFL/Incandescent, 3 Way Single Pole Slide Dimmer Light Switch, Phrase Cut Dimming 600 Watt max, Cover Plate Included, White

⦿ Digital Dimmer Switch
Digital circuit technology enables smooth dimming of the widest range of LEDs with high consistency, compatibility and changeable dimming curve. Set optimal dimming range for different bulbs with the initial brightness controller.

⦿ 3-Way /Single Pole Wiring Applications
3-Way/ Single Pole compatible slide control dimmer.Only one dimmer switch can be installed per 3 way circuit.

⦿ Wide Compatibility
Works with dimmable LED/CFL rated up to 200W, Incandescent & Halogen light lamp bulbs rated up to 600W on the market. Works with most of dimmable LED, CFL, Incandescent & Halogen light lamp bulbs.

⦿ Easy to Install
Decorative wall plate and mounting screws Included,No screws needed to fasten wall plate. Looks perfectly blend into the wall.

⦿ 1-Year warranty
ETL listed for your safety and 100% inspected before shipment. We offer one year warranty replacement service, and lifetime online technical support within 24 hours for this product.

Product Description

1: Digital circuit technology enables smooth dimming of the widest range of LEDs. Set optimal dimming range for different bulbs with the initial brightness controller.

2: NOT COMPATIBLE WITH SMART LIGHTS, SUCH AS GE C, PHILIPS HUE WHICH IS CONTROL BY WIFI, BLUE TEETH, ZIGBEE etc.3

As one of the leading and professional LED fixtures supplier, our team has more than 15 years lighting fixture designing and production experience. We committing to design high-tech, stylish, safe and high quality LED products, making your lighting experience more pleasant and comfortable

Product Specification

1. Work with dimmable LED, CFL, Incandescent and halogen bulbs( LED / CFL: 4W-200W, Incandescent/Halogen: 15W-600W)

2. Dimmable LEDs may not dim as low as incandescent or halogen bulbs. Dimming range of dimmable LEDs can be vary from manufacturer to manufacturer.

3. When multiple bulbs are used with one dimmer, DO NOT mix bulb types. All bulbs shall be either LED, CFL, Incandescent or halogen. Using the same model of each bulb will enhance dimmer performance

• Input Rating : 120V, 60Hz
• Switch Type: Single pole/3-way
• Wiring Type: Terminal caps(Wiring nuts)
• Dimmer size:4-1/8" X 1-3/4"X 1-1/8"

SINGLE POLE/3-WAY CIRCUIT INSTALLATION

• Single Pole: Connect the green dimmer ground wire to ground wire in the wall-box, Connect the black dimmer wire to the hot input wire removed from the switch,Connect red dimmer wires to the light fixture wire removed from the switch,Use wire nut to cap the remaining wire on dimmer
• 3-Way: Connect the green dimmer ground wire to the ground wire in the wall-box, Connect the black dimmer wire to the red with white wire removed from the switch, Connect the red dimmer wires to the remaining wires removed from the switch

Manual Control At the low end of the dimming level when the light starts to flicker, fine tune the dimming performance by turning the adjustment dial clockwise so that the light output is stable. Set your slider to where there's no hum or flickering on light fixtures.	Screw-free wall plate Install the dimmer and mounting frame with the tabs facing down. Put on the screw-free wall plate after tuning the adjustment dial.	Compatible with CFL/LED Cloudy Bay dimmer improves the compatibility of dimmable CFLs and LEDs compared to standard dimmers by eliminating flicker, making sure lights operate properly at all levels.

Trouble shooting

1: Light flash in the whole dimming range

a. Check the lighting/lamp is dimmable or not

b. The lighting fixture is not compatible with our dimmer

c. Most dimmable LEDs and CFLs will not acheive as low level as incandescent or halogen sources.

d. Control a group of lighting fixtures/lamps with one dimmer may cause flicker due to variation of dimming circuit and dimming range. Please use dimmer to

control lights/lamps in the same type or same model.

2. Light flash in low dimming range

a.Slightly turn the adjustment dial counter- clockwise to achieve full compatibility with the lights

3. Get dimmer list from light bulb/lighting fixture's supplier to avoid compatible issue with our dimmer, a broad dimmer list means less dimming issue, such as flicker,buzz, or flash issue, also, better buy FCC compliance lighting product for stable performance.
