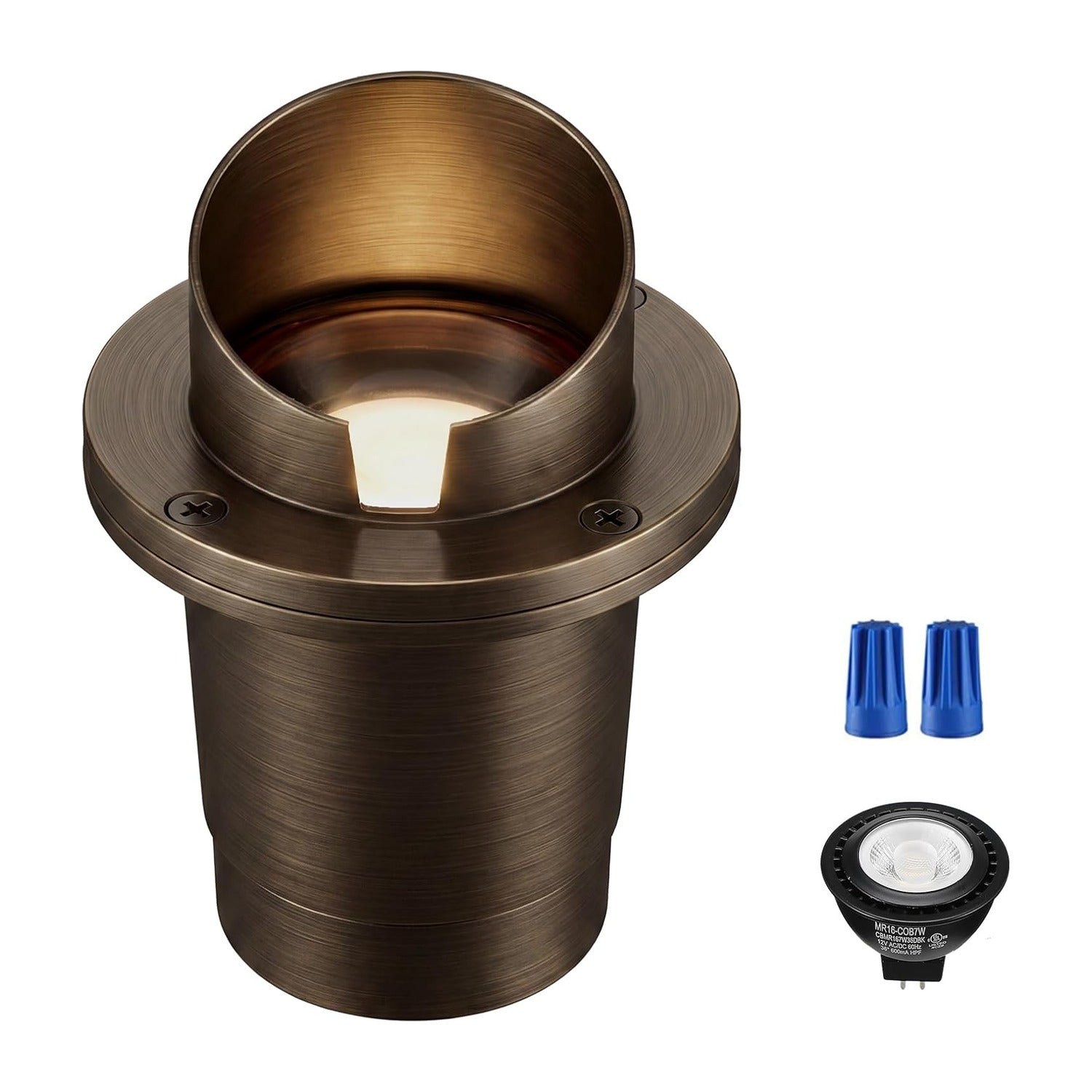

Single antique brass shielded-top well light with MR16 LED bulb and blue wire nuts on a white background.
Cloudy Bay 12-15V well lights uplighting a house wall, with transformer wiring diagram and 7W, 500LM, CRI 90+ specs.
Cloudy Bay brass well lights uplighting palm trees, statues and house corners at night; 'Wide Application' overlay.
Shielded top brass well light selling points: light goes where you want, fixture stays out of sight; MR16 bulb included.
Install guide: dig hole, insert shielded-top well light, connect wires with waterproof wire nuts.
Cloudy Bay shielded-top brass well light glowing in garden mulch; IP67 badge with frost and heat tolerance callouts.
Close-up of solid brass anti-glare hooded well light head with dual silicone gasket seal and GU5.3 socket.
Promotional comparison graphic for a spotlight bulb, showing a black spotlight bulb at the top with text reading 'Why Choose US?' and two side-by-side product comparison panels labeled 'MR 16 Bulb' and 'Other Bulb' with feature icons and red/green check marks.

Vendor:CLOUDY BAY

Landscape Well Lights, Solid Brass Outdoor Low Voltage In Ground Light for Deck Pathway with Replaceable 7W MR16 LED Bulbs, Shielded Top

Aim light, not glare — the shielded brass hood throws a crisp 36° beam exactly where the path needs it.

$47.99
In stock, ready to ship
Style
Style: Shielded Top

If in stock, Ships within 1-2 business days.

Delivery will take around 3-5 business days.

30-day risk-free trial.  Learn more

You may also like
Features
  • Solid Brass Construction: Crafted from high-quality solid brass for superior corrosion resistance. Seamlessly integrates into pathways and gardens, outlasting standard aluminum fixtures.
  • IP67 Waterproof: Features a dual silicone gasket for an IP67 rating. Built to withstand heavy rain, snow, and ground moisture year-round in any outdoor environment.
  • Replaceable MR16 LED: Includes a UL-listed 7W 2700K LED bulb (500 lumens). The standard GU5.3 socket allows for easy bulb replacement and lighting customization.
  • 12V-15V Low Voltage: Safe and energy-efficient for landscape use. Comes with a 3ft double-insulated wire and waterproof wire nuts for secure, direct-burial installation.
  • Shielded Top Design: Glare-reducing shielded cover directs light exactly where needed. Ideal for pathways and walls, improving outdoor visibility without blinding passersby.
Specs

Model: – CBIGSHAB-1PK

Base Material: – Solid Brass (die-cast)

Dimensions: – 4" diameter; top 2" + body 3" (shielded top)

Color Temperature: – 2700K warm white (fixed)

Wattage: – 7W

Brightness: – 500 lumens

CRI: – 90+

Beam Angle: – 36°

Voltage: – 12V-15V low voltage

Water Resistance: – IP67 (dual silicone gasket)

Certifications: – UL Listed (bulb, cord, wire nuts); FCC

Number of Items: – 1

Included Components: – 1x light housing with 3 ft UL-listed 18AWG lead, 1x UL-listed 7W MR16 LED bulb, 2x UL-listed waterproof wire nuts

Warranty

3-Year Limited

LIMITED WARRANTY:This fixture is warranted against defects in workmanship and materials under normal household use and when installed and operated in accordance with the included instructions. This warranty does not cover damage from misuse, alteration, accident, or improper installation.

Installation Guide

Download the installation guide below for step-by-step setup instructions.
