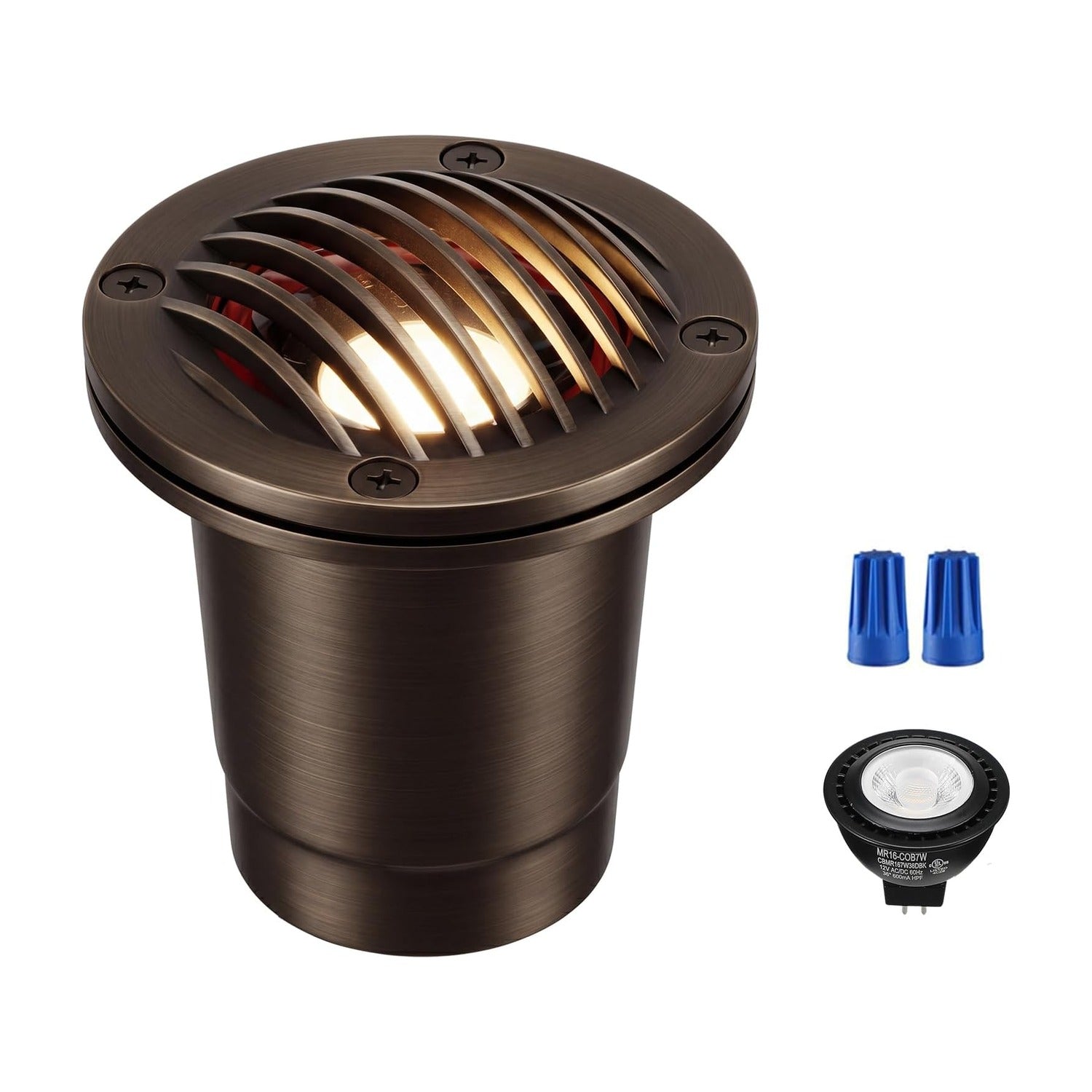

Single antique brass grated-top well light with MR16 LED bulb and blue wire nuts on a white background.
Cloudy Bay 12-15V well lights uplighting a house wall, with transformer wiring diagram and 7W, 500LM, CRI 90+ specs.
Cloudy Bay brass well light graphic with MR16 LED bulb, family dining on lit patio at dusk, FCC badge.
Grated light cover close-ups under a mower wheel and vehicle tire; path lights sit flush in the lawn.
Easy install guide: 4 steps — dig hole, install bulb, connect wires, insert the brass well light.
Cloudy Bay grated-top brass well light in rain, snow and heat scenes; 'Built to Brave All Elements,' IP67 waterproof.
Close-up of brass well light: dual silicone gasket seal, GU5.3 socket, 3ft pre-wired 18AWG lead.

Vendor:CLOUDY BAY

Landscape Well Lights, Solid Brass Outdoor Low Voltage In Ground Light for Deck Pathway with Replaceable 7W MR16 LED Bulbs, Grated Top

One light, zero fuss — the brass grate shrugs off mower wheels while a warm glow picks out the driveway's edge.

$46.99
In stock, ready to ship
Style
Style: Grated Top

If in stock, Ships within 1-2 business days.

Delivery will take around 3-5 business days.

30-day risk-free trial.  Learn more

You may also like
Features
  • Solid Brass Construction: Crafted from high-quality solid brass for superior corrosion resistance. Seamlessly integrates into pathways and gardens, outlasting standard aluminum fixtures.
  • IP67 Waterproof: Features a dual silicone gasket for an IP67 rating. Built to withstand heavy rain, snow, and ground moisture year-round in any outdoor environment.
  • Replaceable MR16 LED: Includes a UL-listed 7W 2700K LED bulb (500 lumens). The standard GU5.3 socket allows for easy bulb replacement and lighting customization.
  • 12V-15V Low Voltage: Safe and energy-efficient for landscape use. Comes with a 3ft double-insulated wire and waterproof wire nuts for secure, direct-burial installation.
  • Grated Top Design: Durable grated cover protects the bulb from debris and foot traffic. Provides robust, low-profile uplighting perfect for driveways, walkways, and large trees.
Specs

Model: – CBIGGTAB-1PK

Base Material: – Solid Brass (die-cast)

Dimensions: – 4" diameter; top 1" + body 3" (grated top)

Color Temperature: – 2700K warm white (fixed)

Wattage: – 7W

Brightness: – 500 lumens

CRI: – 90+

Voltage: – 12V-15V low voltage

Water Resistance: – IP67 (dual silicone gasket)

Certifications: – UL Listed (bulb, cord, wire nuts); FCC

Number of Items: – 1

Included Components: – 1x light housing with 3 ft UL-listed 18AWG lead, 1x UL-listed 7W MR16 LED bulb, 2x UL-listed waterproof wire nuts

Warranty

3-Year Limited

LIMITED WARRANTY:This fixture is warranted against defects in workmanship and materials under normal household use and when installed and operated in accordance with the included instructions. This warranty does not cover damage from misuse, alteration, accident, or improper installation.

Installation Guide

Download the installation guide below for step-by-step setup instructions.

Download
Download Installation Guide (PDF)
